Mounting Dynamo Lights

fork crown mounts

Cronometro NOB

PWC handlebar mounts

R+M handlebar mounts

headlights on side of fork

Upside down?

Pricing

Taillights

Ordering

First I'll cover mounting headlights

Most of the dynamo powered headlights I sell are designed to meet strict German standards for bicycle lights. In a nutshell, the standards exist to ensure that the headlight beam illuminates the road surface without blinding oncoming drivers and cyclists. The beams are brightest at the top, and become progressively dimmer towards the bottom. The road closer to the rider needs less light to appear as bright as the road further away. These progressive beams are like an automobile's low beam. In order to work as well as possible, the beam is designed with the height of the headlight off the ground as one of the parameters. If the beam is too low, the ground near the rider gets more light than is optimal. If the headlight is too high, the ground near the rider gets too little light. However, mounting too low is far worse than too high.

So these German lights are all designed to work best when mounted at the fork crown, just above the front tire of a normal bicycle with 26" or 700c wheels. You can position them higher or lower, but the further you get from the top of the tire, the more the beam is compromised. Mounting at the handlebar still works well, but if you mount the light too low, the beam deteriorates badly. So I recommend against mounting lights at the level of the front hub, even though many people find that to be a very convenient location for a headlight. It may be convenient, but the beam will be poor.

All of the Busch & Müller headlights and most of the others attach to a mount via a 6mm hole in the base. The hole takes a bolt, horizontally aligned, and perpendicular to the direction of travel. While this interface is almost an industry standard, that doesn't mean you can use any headlight on any mount. Busch & Müller headlights have plastic housings which make them extremely light. Most weigh about 2 ounces. But a few headlights, such as the Schmidt Edelux and Supernova, use aluminum housings. The Schmidt weighs almost 3 ounces, and the Supernova weighs in at about 5 ounces. Busch & Müller goes to great lengths to ensure that their headlight mounts are strong enough for their headlights, but they don't test their mounts with lights made by other manufacturers, and so you can't just assume that a B&M mount will be suitable for some other brand of headlight. None of the B&M metal mounts can be used with Supernova headlights. Though some are probably strong enough, they usually position the switch at the rear of the Supernova headlights too close to the bicycle.

I have different mounts for different bikes. For example, if your bike has sidepull caliper brakes, you can't use a mount designed for cantilever brakes if you're mounting the light at the fork crown. Caliper brake mounts generally also work with V brakes, as the connecting wire passes in front of the mount. However, all mounts for V brakes won't necessarily work with caliper brakes. The base of the mount must be fairly flat and thin if you're going to mount a caliper brake since the mount fits between the brake and the fork crown.

Some headlights are designed to project light not only at a distance, but quite close to the bicycle. These are ideal for commuters and people who ride bike paths. The Busch & Müller Lumotec CYO R headlights and the Lumotec IQ Fly RT, introduced in October, 2010 are ideal commuter headlights, as are the B&M Luxos headlights introduced in September 2012, and the IQ Premium models introduced in September, 2013. But if they aren't mounted high enough above the front tire, the lower part of the beam will be blocked by the tire, or the fender. You do have fenders on your commuter bike, right? So the height of the mount must be taken into account. Some light housings are tall, like the Lumotec IQ Fly, and so they don't need a tall mount to get the light's beam high enough. Other lights, like the Lumotec CYO R are very short, and need a tall mount for the beam to clear the tire and fender.

I list every dynamo headlight mount I sell below, and with each mount, I will soon list all of the headlights it is compatible with. Some headlights ship with a mount included. I note that with each mount.

Some headlights, like those from Schmidt, have a switch that protrudes upwards from the body of the light. If the light is mounted at the fork crown, and if your bike has lots of cables routed past the fork crown, such as for STI and ERGO shifters, those cables might contact the switch, turning your headlight on or off as you turn the handlebar. So you may find that you need to arrange your cables differently.

Mounting any headlight at the fork crown has several benefits. It leaves your handlebar clear for cyclecomputers, altimeters, heart rate monitors and hot & cold running beer dispensers. And as noted above, the beam shapes of German headlights are optimized for the height of the fork crown on a standard bicycle. Positioning the light too high or too low makes the beam less effective.

Here you can see the hot setup back in 1999. On our tandem, using a standard Lumotec, I use a Schmidt cantilever style fork crown mount. The headlight is high enough above the tire that the beam isn't blocked by the tire. There's a handlebar bag above the light. I'm tall enough (5'10") that the handlebar is high enough to hold the bag high enough to clear the light. If you ride with a lower handlebar, you might not have space for a headlight there.

Mounting Older Headlights

Dynamo headlights with halogen bulbs have relatively narrow beams, compared with most LED headlights from about 2007 and later. And several headlights introduced in 2012 have extremely wide beams. So what you see directly below is fine for those older halogen lights. But if you mount newer lights such as the Schmidt Edelux II or Busch & Müller IQ Premium headlights on the side of the fork, the tire will block much of your light. Be aware!

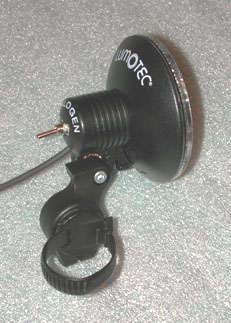

The handlebar mount can be used to place the light low on the side of your fork. Just add the Cronometro Nob. The Nob is intended for mounting computers on aero bars so that the computer is aligned correctly, rather than turned 90 degrees to the side. But the Nob can be mounted to your fork blade, and then my handlebar mount can be mounted on the Nob.

Notice that in the photo above, the mount is on a steel fork. I get lots of telephone calls asking me if this Cronometro Nob is suitable for use with a carbon fiber fork with some bizarre shape. I don't know if it is or if it isn't. I don't use carbon fiber forks, so I'm not competent to comment on the suitability of this method of mounting lights for some sort of carbon fiber impregnated plastic fork.

My handlebar bracket (a slightly modified Shimano Flight Deck computer bracket) holding a Lumotec, attached to a Cronometro NOB. The NOB can be mounted on an aero bar, or on a fork blade, or just about any tube of your bike.

Front view of a Lumotec, mounted on my handlebar bracket, mounted on the NOB, held by fingers. I stock everything but the fingers. By the way, back in the year 2000 when I made this image, the Busch & Müller Lumotec was by far the best dynamo headlight available. It's still a good low cost option, but we now have better lights from Busch & Müller, as well as a few others.


Mounts for Handlebars

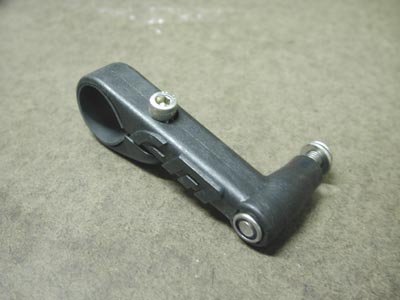

Riese und Müller in Germany make a very fine handlebar mount for traditional diameter bars; the R&M mount. This works on handlebars up to 26.0mm diameter. For larger bars, I have other mounts.

If you use a halogen headlight powered by a hub dynamo, you can add a Schmidt E6-Z Secondary for more light at high speeds.

You can put two R&M handlebar brackets, one on each side of the stem and mount both the Primary and the Secondary headlight side by side. The bracket on the left just goes upside down. You still have space on the handlebar for mounting a computer, make-up mirror, or hot & cold running beer dispenser.

This is useful with halogen bulb headlights, since the beams are relatively small. The bulb's output must be concentrated in order to be bright enough. But some people don't like such a small beam, and so they can add a secondary headlight. This is generally not needed with modern LED headlights, though with some models it can be done.

If you use the dual headlight system by adding the E6-Z Secondary, it's helpful but not essential that the Secondary be easily reached while you're riding, since at low speeds (under 8 - 10mph or so) you'll get more light output by having the Secondary switched off. So, if you want the primary headlight mounted on the side of the fork, you may want the Secondary mounted on the handlebar, or at the fork crown. You could have the primary headlight mounted at the fork crown, and the Secondary mounted on the handlebar. You can have both headlights mounted on the handlebar, or both on an Excess Access bar. Some people simply put both headlights on the fork blades; one on each side, using two Cronometro Nobs and two handlebar mounts.


Headlights on Fork



With all the stuff people have on their handlebars, it can be nice to mount the headlights down on the fork blades, out of the way of cables, odometers, heart rate monitors, etc. By using the Cronometro Nob and my handlebar bracket, you can place one or two headlights on your forks. This page shows you how to do it. The bike is a Rambouillet.

The lights shown here are the Schmidt E6 Primary and E6 Secondary. But this installation will work with the Lumotec and Lumotec Oval Plus headlights also. And remember, both headlights can be the Schmidt E6 models, or both Lumotec models, or a mix. Mix an E6 Primary and Lumotec Secondary or have a Lumotec Primary with an E6 Secondary. It doesn't effect the wiring or mounting.

Start by mounting a Nob on the left fork blade. This will be for your Primary headlight, assuming you live where it's customary to ride on the right side of the road. If you use just one light, or if you have a Secondary but only use it for fast downhills, this keeps the light that's on all the time positioned on the left, where it will be more visible to oncoming traffic.

The Nob works just like a hose clamp. Wrap it around the fork blade, preferably where the blade is not tapered. If you put it on the tapered part of the blade, it can slide down. On steel forks this means placing the Nob up on the oval section of the blade near the top. On plastic forks, aka carbon fiber, perhaps this method will work; perhaps it won't. I don't know. I only know it works well on steel forks without a taper, or on the non-tapered upper section of an otherwise tapered steel fork, such as shown in the photo below. If you have a plastic fork, you would be well advised to mount your lights directly off the handlebar. You might also want to replace your fork, but that's another matter.

Next, trim the excess from the Nob's band with a sharp blade. Don't scratch the paint! ;-)

Now, mount a handlebar bracket onto the Nob. My handlebar bracket is made from a Shimano Flight Deck computer mount with some added hardware. Place the handlebar bracket with the nut for the light away from the wheel, giving maximum clearance between the light and the wheel.

Now, mount the light onto the handlebar bracket. The wire from the Primary light needs to wrap over the back of the fork and down the right fork blade, since the hub's connectors must be on the right side of the bike, unless you have an older SON hub with the black center section between the spoke flanges. With the older hub, the connectors can be on either side. And remember, always mount the headlight right side up. The hole for the mounting bolt is on the bottom. If you mount the headlight upside down, you ruin the superb beam that justifies the cost of these headlights. The light will be very bright close to you and extremely dim further away. Keeping the headlight mounted right side up gives you the most even illumination of the road in front of you.

Here's how it should look from the front. If the headlight is so close to the wheel that it touches the spokes, you've mounted the handlebar bracket backwards. Take the headlight off and reverse the handlebar bracket. If you'll just be using a single headlight, and lots of people do, you're almost done! But this is the Dual Headlight page, so we'll continue. ;-)

Now mount the second Nob on the left fork blade, opposite the Nob on the right. Trim the end and mount the other handlebar bracket. Then mount the headlight onto the handlebar bracket.

Use some cable ties or zip ties to hold the wiring in place. You can get zip ties at any hardware store. Loop any excess cable from the headlight around the Cronometro Nob.

You may still have some excess wire. Loop it together between the fender and the fork crown. Use zip ties to keep everything tidy. If you don't have fenders, try to wrap as much wire as you can around the Nobs.

Here are the wires as they attach at the hub. One wire from each headlight plugs into the hub. The two remaining connectors, one male, one female, connect to each other. (The black plastic block bolted to the dropout eyelet in the upper left corner of the photo is part of the front fender mount. It has nothing to do with the lights or wiring.)

Use zip ties to gather the loose ends together. Trim off the excess length from the zip ties. It makes no difference how you orient the connectors. Here they're pointed down. If you want to point them up, or consult with a Fung Shui Master about it, feel free.

Each light can be easily aimed right to left, and up or down.

Oh, ah, please excuse the mess.

And here's the finished product, all ready for Paris Brest Paris. You can also mount the headlight or headlights directly on the handlebar, if you have space, or off the handlebar with an accessory mount like the Minoura Space Grip. That would eliminate the need for the Cronometro Nobs. But with the lights on the fork, there's no interference with brake and derailleur cables, and your handlebar is free to mount whatever else you need.

You can find mounts for the front hub skewer. But I don't recommend having your headlight that low. The beam won't project well on the road surface. Mount your lights as high as you can on the fork blades.


How Not to Do It!

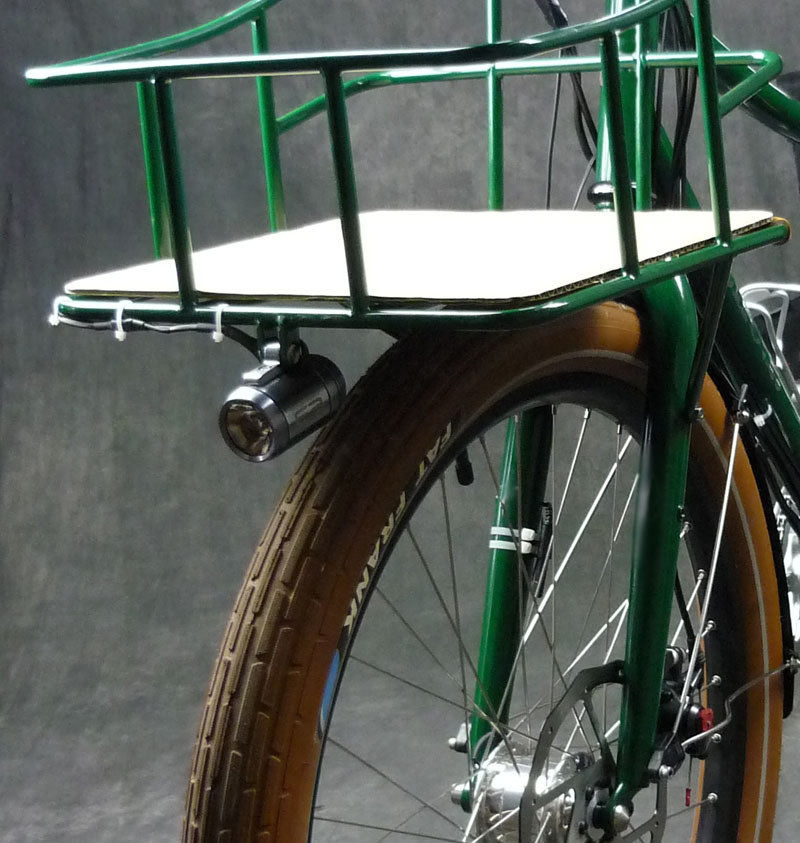

Don't mount the lights upside down. Many dynamo headlights and taillights can get water inside if they're upside down, and most of the headlights are designed to project brighter light at the top of the focused beam, to give more even and safer road illumination. The top part of the beam is projected further down the road, therefore it needs to be brighter. Our headlights tend to be more expensive than many other headlights designed for use with dynamos. The higher prices are partly due to the superior design of the optics. If you mount the lights upside down, you'll end up with a headlight that doesn't even work as well as the cheapest headlights available, you've wasted your money, and you're less safe while riding because you can't see the road ahead of you as well. Please don't mount the lights upside down!

One custom builder (who won't be named) thought it would be perfect to place a Supernova E3 headlight upside down under the front of a basket with a fender on the bike that was too short to keep water spraying onto the light. But the Supernova headlights are designed to be used with the mount positioned at the bottom of the headlight housing, even if you have the round or symmetrical beam (which by the way they no longer make). The wires connect at the bottom, and water can enter the housing where the wires are attached if you position the light upside down. With the light right side up, it's never a problem. But on this bike, not only can rain fall directly onto the headlight, but water gets picked up by the tire and is thrown forward, directly onto the headlight.

Don't mount dynamo headlights or taillights upside down! You may think that having the light upside down makes for an interesting installation. You may think that it helps get the light out of the way; some place more convenient. Well, maybe it does, but it doesn't matter! When the light stops working, that's not particularly convenient, though it may be interesting.

What does "right side up" mean, Peter?

It means that the part of the light that attaches to the mount is located at the bottom of the light. If the part of the light that attaches to the mount is at the top, then, the light itself is upside down. In the photograph above, the light is upside down. In all of the other photographs on this page, the lights are positioned right side up, with their mounting point positioned at the bottom.

I hope this is clear. If it is not clear, please don't get out the solder and the flux and the brazing torch and start building your frame. Put the torch down. Put the cap back on the jar of flux. Put the brazing rod back in its bin. Pick up the phone. Call me. Please.

There is one dynamo headlight designed specifically for upside down mounting. It's aspecial version of the Schmidt Edelux. We have them in stock.


What's compatible with what?

Note: The following was true of the 2009 production CYO headlights. As of 2010, the CYO headlights are shipping with a similar mount, but with a short vertical section which eliminates the problem discussed here. We still have a few of the 2009 spec CYO headlights, and your bike may or may not be a better fit with the 2009 version of the mount. If you prefer one type of mount over another, let us know when you order the light. We can easily change it.

Don't assume that because a headlight comes with a mount, that that mount will work well on your bike. Here's an example of a very good mount, and a very nice bike, where the two are not a good mix. The 2009 Busch & Müller Lumotec CYO headlights come with a very strong steel mount. It's made of 4.5mm diameter rod. If you've got a vise and can apply some leverage you can bend it if necessary to get a better fit for your needs. Most of the steel mounts B&M makes are stampings, and so cannot be bent without weakening the mount. So I really like this new mount. But sometimes it isn't a good choice.

The original Lumotec IQ CYO headlight mount from Busch & Müller has a tall vertical section at the bottom for adjusting the height of the headlight. This is helpful when you have lots of cables running from the handlebar for brakes and gearing and you want to reduce interference between them and the light. But on a bike like this Rivendell A Homer Hilsen, which uses a traditional fork crown, there's not a lot of distance between the bottom of the fork crown and the bottom of the headset. If you also want to install a fender on this bike, the light mount extending down will force the fender down closer to your tire, which obviously isn't good.

Here's a side view. On a bike with a unicrown fork, this wouldn't be an issue. A unicrown fork is very tall in this area. But with the traditional crown, raising the mount any further would cause it to rub against the headset. With some bikes, having some vertical adjustment can be a very good thing, as long as the fork crown is tall enough.

So here's the same bike, same light, but using the HD Caliper mount instead. It holds the CYO headlight at the same height as the CYO's standard mount, so the beam is still far enough above the tire so the tire doesn't block the beam. And the mount doesn't extend below the fixing bolt of the brake, so it doesn't reduce the space available for fenders and large tires.

So why not ship the CYO headlights with the HD Caliper mount and be done with it? The CYO mount is open in the center, and with most unicrown forks, will work with old style cantilever brakes, as well as V brakes. If the brake yoke is below the mount, the cable car run between the two sides of the mount.

For 2010, Busch & Müller redesigned the CYO mount. The new version is shorter so it will no longer cause fit problems with traditional fork crowns. We still have the original CYO mount available in both shiny stainless and black plated stainless steel.

Mount photo and part number B&M Luxos B
B&M Luxos U
B&M CYO
B&M Lumotec
B&M LYT
Schmidt Edelux & E6
B&M CYO R B&M Fly & IQ Fly

Price


HD Caliper Brake B&M470H1

Not recommended, perhaps not strong enough. Yes Yes Not recommended. Places light much higher than it needs to be. $ 2.75

HD Caliper Brake B&M470HCG
(Same as above but chrome plated. Corrected photo soon)

Not recommended, perhaps not strong enough. Yes Yes Not recommended. Places light much higher than it needs to be. $ 4.50

Caliper Disc or V Brake
B&M475DPB

mount

Yes (Mount designed specifically for this light) Yes Yes (Mount designed specifically for this light) Not recommended. Places light much higher than it needs to be. $ 4.00
Caliper Disc or V Brake
B&M475DSPB
Black plated version of above
Yes (Mount designed specifically for this light) Yes Yes (Mount designed specifically for this light) Not recommended. Places light much higher than it needs to be. $ 5.00

CYO Cantilever
B&M475DUPB
for low profile cantilever brakes

mount

Yes, though with minor blockage of bottom of beam by the tire. Yes Yes, though with minor blockage of bottom of beam by the tire. Not recommended. Places light much higher than it needs to be. $ 6.50

Fly Cantilever
B&M474DUPB
for low profile cantilever brakes

mount

Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Yes (Mount designed specifically for this light) $ 5.00

Fly Stainless
B&M474DPB
for caliper, V and disc brakes

fly mount

Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Yes (Mount designed specifically for this light) $ 4.00

Fly Stainless (black plated)
B&M474DS
for caliper, V and disc brakes

fly mount

Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Not Recommended, light will be too low and bottom of beam will be blocked by the tire. Yes (Mount designed specifically for this light) $ 4.75

Nylon V or Disc
B&M471LH
Very durable, unbreakable plastic.

mount

Yes Yes Yes Not recommended. Places light much higher than it needs to be. $ 3.50

Nylon Headset Mount 1"
for threaded headset, mounts under lock ring, replaces the washer
B&M471B

headset mount

Yes Yes Yes Yes $ 3.50

Nylon Headset Mount 1- 1/8"
for threadless headset
B&M471B11

mount

Yes Yes Yes Yes $ 5.50




Nitto Lamp Holders

light bar

With the Lamp Holder you add a considerable amount of real estate for mounting headlights, computers, heart rate monitors and whatnot, compared with the handlebar alone, or with any other handlebar accessory I know of. The Lamp Holder is eight inches long, and 22.2mm in diameter, so anything designed to mount on a handlebar can mount to this, with the exception of a handlebar bag that uses the handlebar as its sole support. I have the two clamps as close together as possible in this photo. But of course you can position them wherever you like as long as you're at the center large diameter of your handlebar. These will not fit the new oversized carbon fiber handlebars, only 26.0mm bars, the traditional road size. If you have 25.4mm bars, we have shims for sale, made by Nitto.

Here we have two headlights, a Lumotec Primary and E6 Secondary, a Busch & Müller F Lite, a Cateye computer and a Topeak computer (the closest thing I had to a heart rate monitor) with still room to spare. The gap between the handlebar and the Lamp Holder bar is 1.25" or 31mm.

Here are the same to dynamo powered headlights, plus two B&M Ixons for backup. Anyone doing Paris Brest Paris should have backup lights. And the Nitto Lamp Holder 2 gives you plenty of space for them. $ 96.00

We also have the Nitto Lampholder 1, which has a single clamp and includes two shorter bars, one longer than the other.

Nitto Lampholder 1: $ 65.00

The Nitto Lampholder 5 replaces the nut on your front QR skewer with a cylindar which then accepts most handlebar mounts. So you can mount your headlight down by the front hub. I would only recommend putting your headlight that low if there is simply no alternative.

Nitto Lampholder 5: $ 36.00


Terra Cycle Mounts

Terra Cycle makes a handy light mount for recumbents and other bikes with unusual mounting requirements.

The arms of the Terra Cycle accessory mount are available in a variety of sizes. You can get both arms 100mm, one arm 75mm and the second 100mm, and one arm 50mm and the second 75mm. This allows the light to be positioned at various distances from the mounting points. $30.


Taillight Brackets

This is a rack side view of the DToplight XS Plus upside down. It's upside down so you can more clearly see the wiring connections on the left side. This taillight is powered by a dynamo. We have similar taillights that are powered by AA batteries, and mount the same way. The light will have two bolts facing forward to attach to a rear rack on your bicycle. Some racks like most Tubus models have a bracket on the rear to mount these lights. But some racks don't. So we have adapters. The light ships without the mounting bolts attached. You can choose between the 50mm width holes or the 80mm width holes. This light has the bolts at 80mm. But since I know of no rear racks sold in the US with holes only at 80mm, but several with holes only at 50mm, I think it's best to use the 50mm holes.

If your rear rack has a single hole in the rear that will take a bolt which faces in the direction of travel, you can mount this bracket into that hole and then you'll have the 50mm and 80mm mounting points for any of the Busch & Müller rack mount taillights such as the DToplight XS Plus above. Busch & Müller Single Hole Bracket: $ 6.75

If your rack has no hole in the rear but does have either a top plate or some cross braces, this T bracket can be clamped to the top of your rack and then the taillight can be bolted to it. The fore/aft length is 155mm.

Here's a DToplight XS Plus mounted on a T bracket using the 80mm bolt positions. Busch & Müller T bracket: $ 5.00

If your bike has a seat post binder bolt that's big and not recessed into the seat cluster, you can probably use this bracket to mount a taillight on the seat post binder bolt. The hole on the left would be at the seat post binder. The hole is about 8.5mm in diameter. Busch & Müller Seat Post Binder Bracket: $ 3.50



I sell Tubus racks which incorporate a mounting bracket which will fit many types of Busch & Müller tail lights including the DToplight Plus and 4DToplight Permanent. The Tubus Cargo is a heavy duty tubular cromoly steel rack for extended touring and heavy loads. Most Tubus racks will directly mount all of the rack mount taillights.


Pricing

Accessory mounts for mounting the DToplight and 4DToplight series taillights on racks not equipped with the proper bracket.
Several companies are now making mounts that place the headlight at the front hub axle. They replace the adjusting nut of a quick release skewer with a threaded cylinder the diameter of a handlebar. You then mount the headlight to that cylindar using a standard handlebar mount. I have these mounts for sale, but I strongly recommend not using them if at all possible. The hub axle is too close to the ground to project a good beam. Only if there is simply no other possible way to mount a headlight should you use one of these mounts.
Bracket for rack with single center hole
$ 6.75
Bracket for rack with no rear mounting hole (T Bracket)
$ 5.00
Bracket for seat post binder bolt
$ 3.50
Fender mount taillights can be mounted on a rear cantilever brake with the "Cross" bracket. $ 4.00

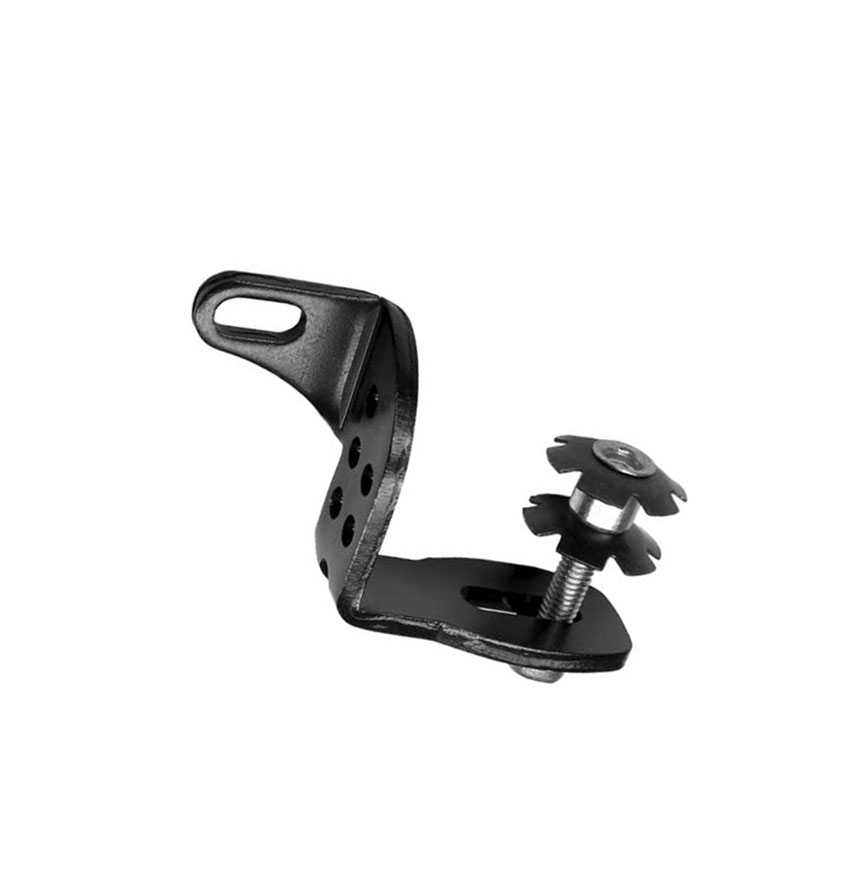

Headlight Mounts

In Germany, almost all of the bikes using dynamo lighting systems are "touring" or "commuting" bikes. These will typically have tires at least 35mm wide, or larger. The normal inflation pressures are 80psi, or lower. The headlights are most commonly mounted right at the fork crown, directly over the front tire, using a steel mount. In the late 1990's when brevet cyclists here in the US started using these lights on bikes using 23mm tires at 90psi and higher, the vibration would often cause the mounts to break, particularly with the heavier Schmidt E6 headlight. So for a long time I have not had a reliable means of mounting an E6 on a racing bike with caliper brakes. But that may be changing.

HD Caliper Mount

caliper bracket

This new mount is heavier and is manufactured in a different way than the earlier, similar looking mount. The older mount would sometimes break, particularly when used on racing bikes, or any bike running high pressure tires, 90psi and up. So I never advised people to use the old mount with the Schmidt E6 headlight, which is heavier than the Lumotec headlight these mounts are designed for.

But this new heavier Lumotec mount has now been used with the Schmidt E6 for several years and we have not had a single reported failure. However, I am not yet convinced that it is strong enough for the Schmidt Edelux which is almost one ounce (25%) heavier.

The CYO mount would be a better choice for the Edelux.

Busch & Müller bracket to mount the round Lumotec headlight between fork crown and caliper brake. Model B&M470H1.

Compatible with: Busch & Müller Lumotec, Lumotec CYO, Lumotec LYT, Schmidt E6

$ 2.75

Busch&Muller bracket to mount the Lumotec Oval Plus headlight between fork crown and caliper brake. Model B&M471FPB. Included with Oval Plus. This shouldn't be used to mount a Schmidt E6 or Inolight.

Compatible with: Busch & Müller Lumotec Oval, DLumotec Oval

$ 1.25

B&M Nylon Linear Pull Brake Mount

light bracket

This new mount (2006) works with almost any headlight on a fork with V brakes or disc brakes. Model B&M471LH. It's a strong nylon material so it won't break from vibration induced fatigue. It's designed to point straight up from a unicrown fork, so the transverse cable of a V brake will pass underneath the headlight. The surface that faces the fork is curved for a good fit. $ 3.50

B&M Lumotec Fly Cantilever Mount

cantilever mount

Lumotec Fly Cantilever mount from Busch & Müller.

This mount works with most bikes having traditional cantilever brakes, including low profile cantilevers. Notice that the hole in the fork crown is directly behind the yoke. The mount must pass below the yoke. Since the Lumotec Fly and Lumotec IQ Fly headlights are rather tall, the mount itself doesn't have to be tall in order for the headlight beam to clear the top of the tire or fender.

A great headlight beam is no good if it's blocked by your tire. And that's why this mount should not be used with most dynamo headlights, such as the Lumotec Lyt, Lumotec IQ CYO, or Schmidt Edelux. But with any of the Fly versions, it's ideal.

The Lumotec Fly cantilever mount is made of 4mm diameter stainless steel rod. Make sure your mounting bolt is long enough for that 4mm thickness.



$ 5.00

B&M Torx Bolt Set (T20)

bolt

Since it uses a Torx driver, rather than an Allen wrench or box end wrench, this bolt offers better security. Takes a Torx T20 wrench, not included. Works with all B&M and Schmidt headlights on the B&M stainless rod mounts, such as the CYO and Fly. If you use the HD caliper mount, you'll need to add a few spacers as the bolt is too long. $ 8.25


headset light mount

This new mount (2006) works with many headlights, including the E6. It's model B&M471B and made of tough nylon.You place this mount within the headset stack, perhaps replacing a spacer. The headset must be a 1" threaded type to fit. And you will need enough space between the position of the mount and the underside of your stem, so a highrise type stem will be best.

This mount is now also available for 1 1/8" steerers.

$ 3.50



$ 5.50


topal mount
This mount works with the DLumotec Topal series headlights. Model B&M472FLH. It's for mounting the light at a fork crown with caliper brakes or v brakes. This mount might work with a Schmidt E6, though the light will be rather low and the tire might block the beam, depending on how high your fork crown is. $ 1.50

topal mount
This mounts the Topal series headlights at the fork crown with regular cantilever brakes. It also works with the Lumotec Oval and DLumotec Oval headlights. Model B&M472BAPB. $ 4.00

Schmidt (Thorn) Cantilever Mount

canti mount

Traditional cantilever brakes can pose a special problem when trying to mount a headlight at the fork crown. This new mount from Robin Thorn can solve the breakage problem, as long as your front brake is set up with a high enough yoke. Look at the fork from the front. If the hole in the fork crown is below the yoke, this mount will work.

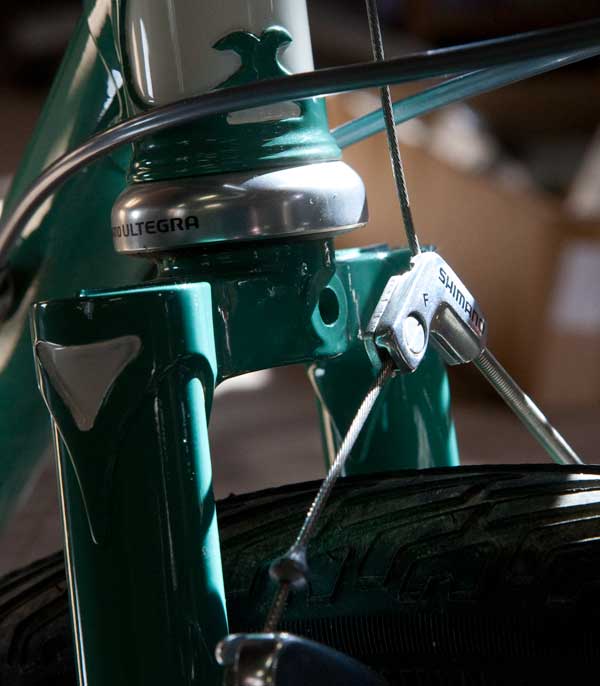

Here's an example of a yoke in the wrong position. This won't work!

Here's what to look for. In this photo, the yoke is directly in front of the hole in the fork crown. In order to mount a light here, you need a mount that would extend under the yoke, like some of the Busch & Müller cantilever mounts which are shaped somewhat like the letter "U". Other cantilever brakes, like the Paul Neo-Retro, use a longer yoke cable, and a higher yoke position. So the Schmidt canti bracket will work with those brakes, but not if your brakes have a yoke positioned as in the photo above.

Use this mount without the spacer for most V brake installations, and with the spacer for most traditional cantilever installations.

If you use a Schmidt E6 or Edelux headlight, and if you use a wired taillight, you'll need to do a bit of modification to use this mount. The slot is exactly 10mm wide and there's not enough space for the taillight Ground connector to fit. The Ground connector for Schmidt headlights is placed against the base, making the base effectively a bit over 10mm. But you can place that connector anywhere on the mount, like up against the fork crown. You'll just have to file off the anodizing. Anodizing is an electrical insulator. Once you file off the anodizing, the mount can conduct Ground.

Schmidt (Thorn) Cantilever mount, Part number SCH75530 $ 34.00

brompton mount
This stainless steel mount from Schmidt enables mounting a headlight at the fork crown on Brompton folding bikes. Since the Brompton front wheel is rather small, the light can be close to the tire and still not have its beam blocked by the tire. The forward extension of the mount is 50mm or 2 inches.
Schmidt headlight mount for Brompton fork crown, stainless: $ 6.00

handlebar mount
Schmidt makes this attractive and rugged handlebar mount for oversized handlebars. It's available in polished aluminum as shown here, or in black anodized aluminum. The band is stainless steel. You can use it on standard bars if you like. You just need to shorten the stainless steel band.
Schmidt Hbar headlight mount aluminum polished $ 40.00
Schmidt Hbar headlight mount aluminum black $ 40.00


Custom Handlebar Bracket for mounting Lumotec or Schmidt E6 directly on handlebar
or Cronometro "NOB": Tall
$ 17.50
Custom Handlebar Bracket for mounting Lumotec Oval Plus directly on handlebar
or Cronometro "NOB": Short
$ 13.00
R&M handlebar bracket (best for direct handlebar mounting) $ 19.00

Handlebar Accessories

Nitto Lamp Holder 8" 200mm wide $ 96.00
Minoura Space Grip 130mm wide $ 11.00
Minoura Space Grip 100mm wide
$ 10.00
Cronometro "NOB"
$ 10.50

Rear racks that accept Dtoplight Plus taillights without modification.

Tubus Cargo rear rack 700c with bracket
for taillight:
$ 121.00
Tubus Cargo rear rack 26" with bracket
for taillight:
$ 140.00

Where to Buy?

Call us at 603 478 0900 to order directly from Peter White Cycles.

See this page for a list of local bicycle shops that generally stock our products, or can order them for you. If there's no shop in your area, you can of course order directly from us.


Headlights

Check out the great variety of headlights for use with the SON.

Taillights

For a detailed description of compatible taillights, see my page on taillights.

Ordering

Almost everything you need to know about pricing and ordering a lighting system can be found here.





Back to Lighting Systems page

Back to: Products page

Back to: Peter White Cycles home page
